 electrostatic powder recovery booth

The carbon steel powder coated spray chamber with the multi-cyclonerecovery gives almost 100 % powder utilization. It is maintenance free and have very long life. The powder spray booth is easy to clean, resulting in a quick color change and is safe to operate. No powder spillage out of the booth and maximum recovery through the multi-cyclone results in pollution control.



why choose our Multi-cyclone+ after filters recovery system powder spray booth?

  It is an improvedtechnology based on mono-cyclone. The small height of clones allow for easymobility and faster cleaning operation





Improved Transfer efficiency.



Pollution free operation.



safe to operate



Maximum recovery efficiency.



Durability.



Quick colour change.

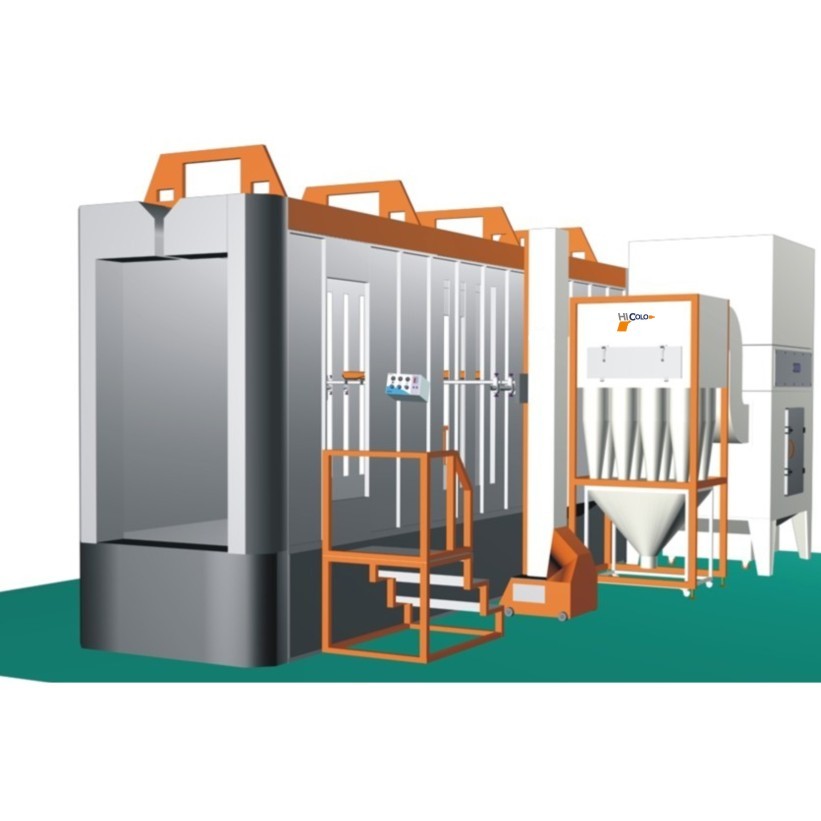

 The carbon steel powder coated spray chamber with the multi-cyclone recovery consists  coating chamber, multicyclone,filters with blower,motor & bin.

1,chamber:The chamber is having panel type construction, square in shape made up of 1.2 mm GI sheet. For better life, these arepre-treated & Powder Coated. For better visibility, it is coated by grey colour from inside & by orange from outside. Chamber bottom is slopping in shape. So powder collection is easy. To suck the powder, at the bottom there is  a loose 'C' channel which sticks to the side wall when blower is on.

2,Multicyclone:
This consists of the cluster of very small cyclones which are less in diameters& height. The Powder sucked from the chamber gets distributed in to eachsmall cyclone. Due to small diameter & very high air velocity, maximumpowder moves along the periphery of cyclone. As each small cyclone handlessmall amount of powder, the efficiency of complete multicyclone is as high as98.5%. Due to such high efficiency maximum powder is saved & so cost of thebooth is recovered within very less time.



2,filters with blower,motor

For Powder recovery aconical bin is designed to be attached below multicyclone. To remove the binwith powder, a separate trolley is given below the bin.




DuctlessConstruction:

In between multicyclone& chamber there is no separate duct piece with bends. There is no nutbolting construction which is very very tedious for colour change & takeslot of time. As a duct there is just a loose 'C' channel. So this booth is veryeasy for cleaning. Saving time and labor.



technical data of spray booth

Outside size4000 x W 1200 x H 3000mm
Workpiece openingW700x H1800mm
Touch up openingW700 X H1500mm
Auto gun openingW 100 x H 1750 mm
Exhaust8,000 M3/Hr(150mm/Aq)
Fan typeAnti-explode Fan
Booth Carbin materialSUS304
Fluorescent lamp40W
Cartridges filter10pcs
Booth the average wind speed0.5M/Sec.(150mm/Aq)
Voltage

380V

For different models:



Different Models:
Depending upon size of the article, coating requirements, material handlingrequirements we have designed some standard models. As a special requirementdifferent customized models are also developed.




Velocity of booth should be:



Appropriate enough so that maximum powder should be attracted on the article.



If suction velocity is more, more amount of powder will be sucked towards cyclone & less on article.



If suction velocity is less, then powder will come out from cutout & surroundings will be polluted.




Spray booth Selection Criteria:



Easiness in colour change , No. of colour change ,Frequency of colour change.



Selection of Booth design.



Size of Article ,Weight of Article.



Selection & type of Track / Trolleys from 1 side or 2 sides.



System of track / trolleys.



Any other type of material handling.
