New electric curing oven 1732 delivered to Indonesia
Issue Time:2016-09-23

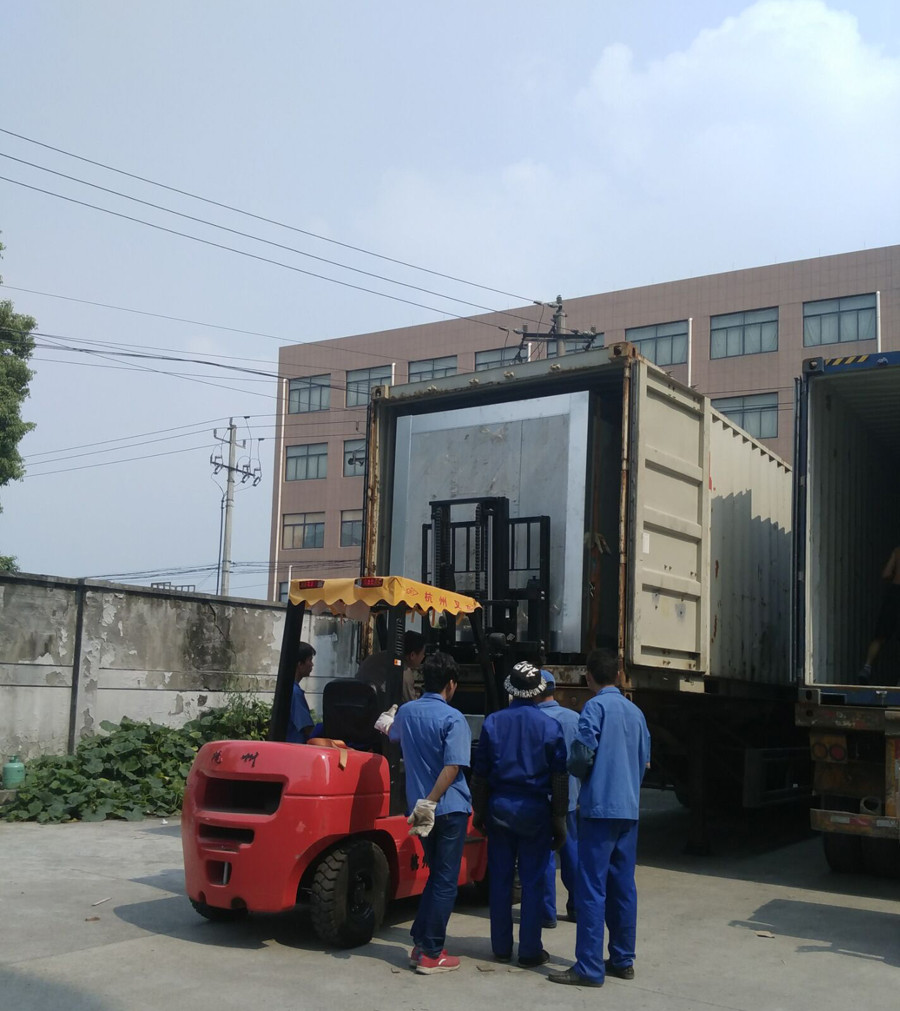

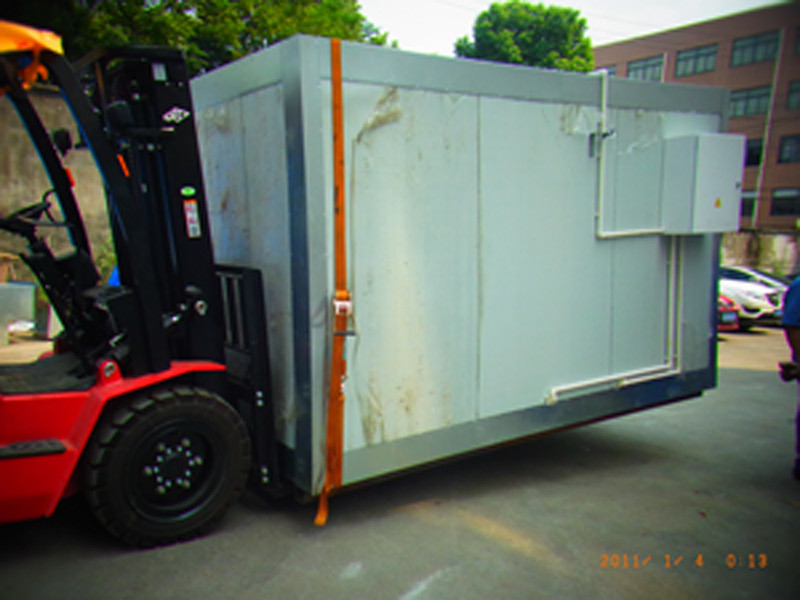

On Sep.22th,we delivered electric curing oven 1732 to Ningbo port. Inside dimension is W1640*D3200*H1700mm.  It's equipped with cart which is easy for hanging the coated workpiece on the racks and goes in the oven smoothly.



Technical Parametes

ModelCOLO-1732
Worksize dimensions1640width x 1700 height x 3200 depth
Power supplyElectric/ 12kw
Voltage/Frequency380V/220v(50-60hz)
Warm-up time15-30 min. (180° C)
Temperature stability< ± 3-5°C
Temperature max.250° C
Ventilation performance805-1677m3/h
Motor power0.75kw
Circulation/ Air flowVertical ,Variable through holes on the walls
TransportationTrolley
Warranty12 months

Company Information
We are specialised in electrostatic powder coating line, paint coating line ,curing and drying ovens,spray booth,cartridge or cyclone recovery system,conveyor systems, spray or immersion type pretreatment plant.
Also we supply manual powder coating machine and automatic reciprocating robot with powder coating machine, the spare parts for original replacement such as filters, powder coating guns,spray nozzles, pumps and so on.

Welcome contact us if you are interested in powder coating equipment.
